Diesel Diagnostics for Powerstroke Fuel Systems
Ford Powerstroke Repair & Maintenance in Wolfforth for 6.0L, 6.4L, and 6.7L engines showing fuel contamination, turbo failure, or EGR issues
The shop features a Ford Senior Master Certified Technician specializing in 6.0L, 6.4L, and 6.7L Powerstroke diesel engines at Absolute Performance in Wolfforth, addressing the specific failure patterns these platforms experience under work truck conditions. You need this service when your Powerstroke develops hard starting, loss of power under load, excessive black smoke, or fuel system contamination warnings. Factory-level diagnostic equipment isolates issues within high-pressure fuel systems, EGR circuits, and turbocharger assemblies that generic scan tools cannot access.
Powerstroke repair covers EGR and DPF diagnostics to address carbon buildup affecting intake air temperature and exhaust backpressure, high-pressure fuel pump upgrades replacing CP4 pumps known for catastrophic failure that sends metal debris through the entire fuel system, turbocharger replacement when variable geometry mechanisms seize from soot accumulation, head gasket repairs on 6.0L engines where bolts stretch under combustion pressure, and oil cooler replacements that fail and introduce coolant into the lubrication system. These repairs prevent cascade failures where one component damages multiple related systems.
Schedule a Powerstroke diagnostic evaluation to identify fuel system or turbo issues before contamination damages injectors and high-pressure components.
What Changes After Powerstroke Service Completes
Powerstroke service involves downloading fault codes from the powertrain control module, analyzing fuel pressure data during cranking and load conditions, and performing cylinder contribution tests to isolate failing injectors. CP4 pump upgrades include installing a bypass filtration system to capture metal particles if pump failure occurs, protecting injectors worth thousands of dollars from contamination. Turbocharger replacement requires inspecting intake piping for oil accumulation indicating seal failure and cleaning EGR passages that restrict exhaust flow when clogged.
After Powerstroke repairs, your truck starts immediately without extended cranking periods, delivers smooth power without hesitation during acceleration, maintains consistent boost pressure under load, and eliminates excessive smoke during cold starts or hard pulls. Engine temperatures stabilize within normal ranges, oil pressure remains steady across RPM ranges, and fuel economy returns to expected levels for your truck's configuration and work demands.
Powerstroke maintenance includes monitoring oil analysis reports for fuel dilution indicating injector leakage, tracking DPF regeneration cycles to identify incomplete burns that cause filter plugging, and replacing fuel filters at intervals shorter than Ford specifies when operating in dusty West Texas conditions. Head gasket repairs on 6.0L engines involve ARP stud installation to prevent repeat failures from insufficient clamping force.
Answers to Frequent Service Questions
Powerstroke owners in Wolfforth face specific reliability concerns based on these engines' known failure points and the demands placed on work trucks in agricultural and oil field applications.
What are common Powerstroke failure points?
The 6.0L suffers EGR cooler and head gasket failures, the 6.4L experiences DPF cracking and fuel system issues, while the 6.7L sees CP4 pump failures that contaminate the entire fuel system with metal debris requiring injector and fuel line replacement across the engine.
How much does Powerstroke diagnostic work cost?
Comprehensive diagnostics using Ford IDS software to access fuel system parameters, perform injector buzz tests, and analyze turbo actuator response typically require two to three hours of diagnostic time before repair recommendations can be specified with accuracy.
What warning signs indicate CP4 pump failure?
Hard starting that progressively worsens, loss of power under load, metal contamination visible in fuel filters, and fuel pressure dropping below specification during cranking all point to pump failure requiring immediate attention before debris reaches injectors.
When should EGR systems be serviced?
EGR valve and cooler cleaning becomes necessary when intake air temperatures run high, the engine loses power at highway speeds, or excessive carbon buildup visible during inspection restricts exhaust gas recirculation affecting combustion efficiency.
Why do 6.0L engines need ARP studs?

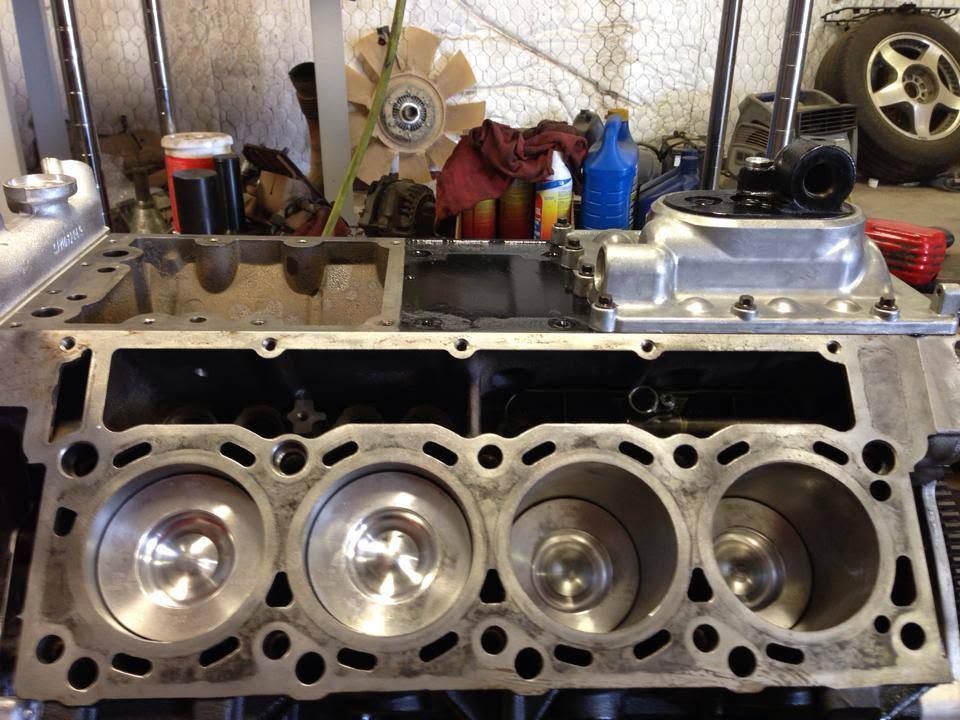

Factory head bolts stretch under combustion pressure and high torque loads common in Wolfforth's hot climate, allowing head gasket sealing surfaces to separate and introduce coolant into cylinders—ARP studs provide clamping force that prevents repeat failures after gasket replacement.
Absolute Performance maintains factory scan tools and technical service bulletins for all Powerstroke generations, applying Ford engineering updates and recall information to repair work. Contact the shop to arrange diagnostic testing when your Powerstroke shows performance changes or warning lights indicating fuel system or emissions component failures.
